Commander Systemfor stored potable water.

Circulation. Monitoring. Disinfection. Re-mineralization.

The H2O CMDR System is designed to serve four primary functions: circulation, monitoring, disinfection and re-mineralization of the potable water kept in a storage tank. It continuously monitors free chlorine, pH, total dissolved solids and water temperature, and doses chlorine proportionally to keep the required residual.

Commander System unit installed on a drilling rig

What water quality levels does the Commander System maintain?

Required levels for the potable water kept in the storage tank.

ParameterRequired level
Free chlorine0.5 ppm
pH6 - 8
Total dissolved solidsUnder 500 ppm
Trihalomethanes80 ppb

What does the Commander System do?

The H2O CMDR System is designed to serve four primary functions.

Circulation

As water sits stagnant in a storage tank, thermal stratification begins to occur. Stagnant water is far more susceptible to algae and bacterial growth. Furthermore, since chlorine is heavier than water, it sinks to the bottom of the tank. This allows bacteria and algae to grow at the surface and on the walls of the tank. Proper circulation of the tank is necessary to maintain an even distribution of disinfectants and prevent algae and bacterial growth.

Monitoring

The CMDR system continuously monitors three major parameters of your potable water supply: total dissolved solids, free chlorine residual and pH. All three parameters are critical to maintaining potable water that meets regulations, including the EPA Safe Drinking Water Act, and should be logged daily.

Disinfection

Regulations require that a minimum free chlorine residual be maintained in a water supply at all times to prevent bacterial growth. The CMDR system injects chlorine as required to maintain the required disinfectant levels.

Re-mineralization

Water produced by the R.O. and distillation process will have a low pH. This condition is created because the watermakers not only reject salts (such as sodium chloride) but also reject minerals such as calcium and magnesium. This results in a high-quality fresh water supply, but one that is mineral deficient and low in pH. Water with a low pH can be aggressive as it tries to neutralize itself by dissolving minerals and/or metals it comes in contact with. This can cause piping to be attacked in the piping systems downstream of the watermaker. The CMDR system includes a neutralizing tank filled with a mineral that is high in calcium carbonate to control the problem. When the produced water from the watermaker flows through this media, it dissolves some of the calcium carbonate, adding minerals back into the water and raising the pH to a neutral level of around 7.

Features and benefits

  • Monitors storage tank free chlorine level
  • Monitors storage tank pH level
  • Monitors storage tank total dissolved solids level
  • Monitors storage tank water temperature
  • Continuously circulates the tank to prevent stagnation and evenly distribute disinfectant.
  • Includes a proportional chlorine dosing system that automatically adjusts chlorine injection rates to actual versus target free chlorine residual levels. Prevents over or under chlorination.
  • On skid storage of two week minimum chlorine supply. Tank includes level gauge and mixing chart for maintaining proper chlorine solution strength.
  • Tank disinfection function included for shock sanitization of storage tank, and carbon filters for de-chlorination allow disinfected water to be reused.
  • Integral filtration system to remove sediment and suspended iron from tank
  • Integral phosphate injection system to stop corrosion in tank and plumbing system.
  • pH neutralization and re-mineralization filter works with pH monitor to maintain neutral pH and adds water hardness to lessen corrosion issues.

Commander System specifications

SpecificationValue
Dimensions48 in x 48 in footprint, 65 in high
Power480 VAC
Inlet and outlet1 1/2 in flanged nozzles
CAD drawings of the Commander System: isometric view and side view

How does the Commander System fit in a potable water system?

The Commander System recirculates and treats the water in the potable water storage tank. The watermaker fills the tank, and centrifugal pumps and a bladder tank send the water to the quarters.

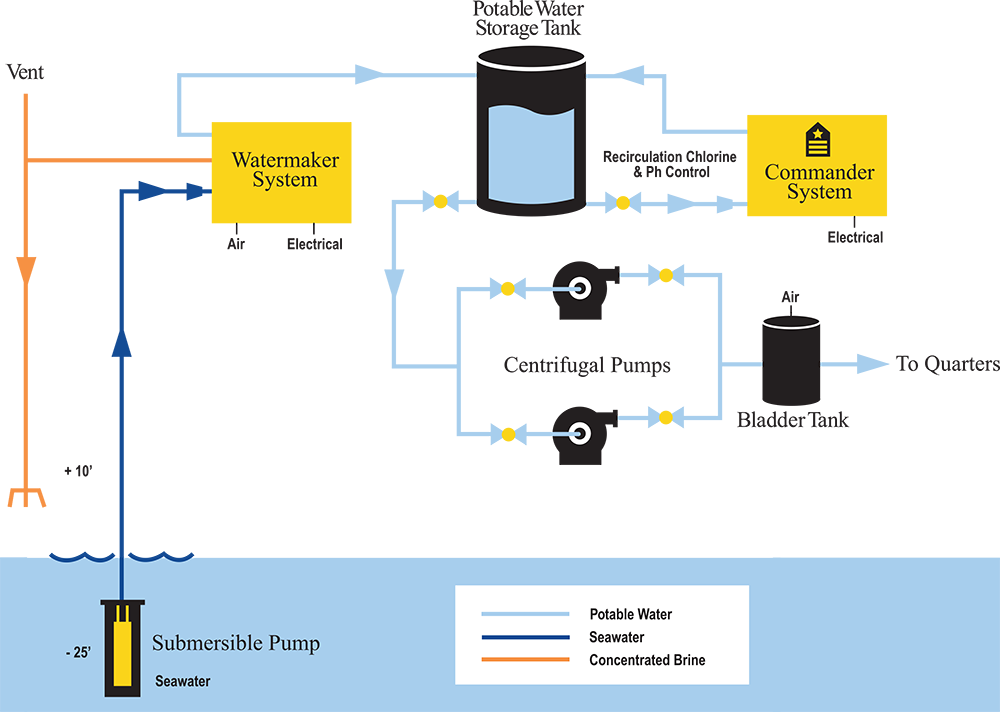

Commander System in a potable water systemDiagram. A submersible pump sends seawater to the watermaker system, which sends potable water to the potable water storage tank and concentrated brine to a vent. The Commander System recirculates water from the tank for chlorine and pH control. Centrifugal pumps and a bladder tank send potable water from the tank to the quarters.Vent+10 ft-25 ftSubmersible pumpSeawaterWatermakerSystemAirElectricalPotable WaterStorage TankCommanderSystemElectricalRecirculation chlorine& pH controlCentrifugalpumpsAirBladder tankTo quartersPotable waterSeawaterConcentrated brine

Commander System in the field

A major drilling company had severe corrosion in the potable water piping of a recently delivered semisubmersible rig, with potable water tanks of over 200,000 gallons. H2O provided a Commander System with Rustfree injection, and the corrosion problems cleared up in a matter of days.

Read the Major Drilling Company case study →

Not sure the Commander System fits your potable water system?

Tell us about your site and our engineers will help you choose the right potable water package.
